2026 Top CCD Inspection Machine Buying Guide
Choosing a Ccd Inspection Machine in 2026 requires more than comparing camera resolution or advertised speed. Manufacturers must connect inspection accuracy with production reality, maintenance resources, and long-term operating costs. A machine that detects a 0.1-millimeter defect may still fail if lighting changes, software drifts, or operators cannot interpret alerts.
This buying guide examines the practical decisions behind modern CCD inspection systems. It considers sensor quality, lens selection, illumination control, image-processing software, conveyor integration, inspection speed, and data traceability. It also discusses how machine performance should be verified using representative samples, including reflective metal parts, printed surfaces, transparent components, and irregular products. Specifications matter. Factory evidence matters more.
Reliable purchasing begins with measurable requirements. Buyers should define the smallest defect, acceptable false-rejection rate, product variation, and required throughput before contacting suppliers. On-site trials can reveal problems that brochures hide, such as vibration, glare, dust, or unstable product positioning. Supplier training and service response deserve equal attention. A technically impressive system becomes expensive when troubleshooting depends on distant support.
The guide also recognizes an uncomfortable reality: no inspection machine eliminates every production risk. Poor lighting design can undermine an excellent camera. Inconsistent samples can produce misleading test results. Even experienced teams may underestimate integration work. Careful validation, documented acceptance criteria, and periodic calibration create a more dependable investment. The strongest choice is not always the fastest or most advanced model. It is the system that delivers repeatable evidence under real factory conditions.
What a CCD Inspection Machine Is and How It Works
A CCD inspection machine uses a camera, lens, lighting system, and software to examine manufactured parts. CCD means charge-coupled device, a sensor that converts reflected light into electrical signals. These signals become digital images for analysis. The machine can detect scratches, cracks, missing components, incorrect dimensions, and surface contamination.
The process begins when a part reaches the inspection area. A trigger, often linked to a conveyor encoder, captures the image at a controlled position. Uniform lighting reduces shadows and glare.
The software then compares image data with programmed limits or reference patterns. It may measure edges, count features, check color differences, or identify abnormal shapes. Results are sent to a control system, which can separate rejected parts from approved ones.
Small details affect accuracy. A dusty lens, uneven lighting, or vibration can create false defects. Calibration must match the actual production environment, not only laboratory samples. Experienced technicians usually test good and defective parts before setting inspection thresholds. Even then, performance is not perfect. A highly sensitive setting may reject acceptable parts, while a relaxed setting may miss a tiny flaw. Regular cleaning, lighting checks, and sample reviews help reveal these weaknesses. Fast inspection is useful, but dependable decisions require disciplined setup and ongoing verification.
CCD Inspection Machine Types for Different Manufacturing Needs

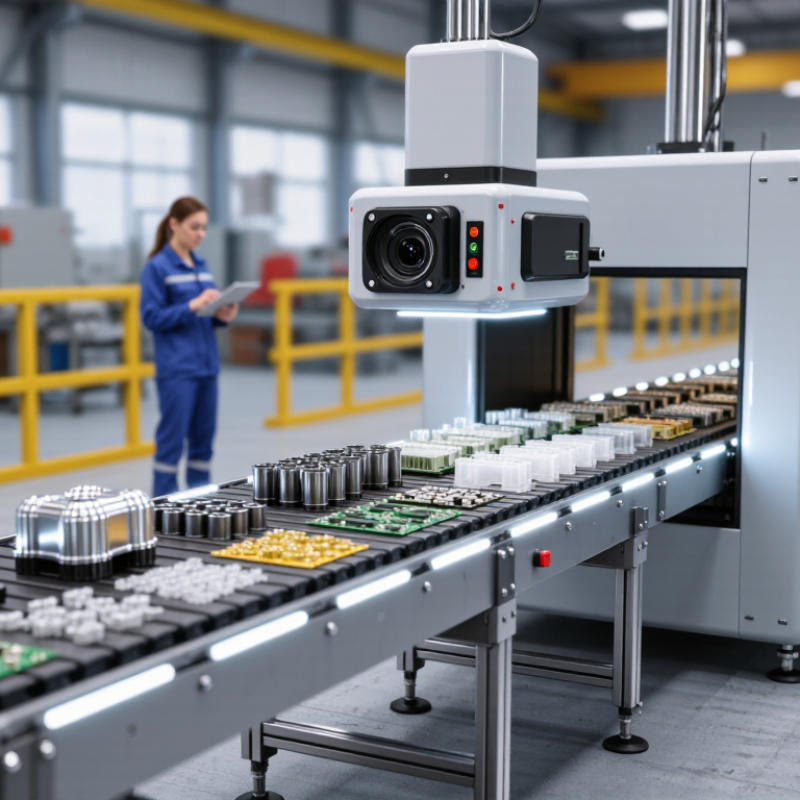

2026 Top CCD Inspection Machine Buying Guide
CCD Inspection Machine Types for Different Manufacturing Needs
Choosing a CCD inspection machine starts with the defect, not the camera specification. A two-dimensional area-scan system suits printed circuit boards, machined parts, labels, and molded components. It captures complete images of stationary products. For fast-moving sheets, films, cables, or continuous web materials, a line-scan system is usually more suitable. It builds images line by line and reveals streaks, pinholes, edge damage, and uneven coatings.
Depth changes the decision. Three-dimensional inspection systems use structured light or laser measurement to check height, volume, flatness, and surface profiles. They work well for solder joints, connectors, seals, and precision assemblies. Color cameras help packaging and printed products, while monochrome cameras often deliver stronger contrast for small cracks and dimensional edges. Telecentric lenses reduce visual distortion when accurate measurements matter. Lighting decides.
In production, choose between inline and offline inspection according to process speed and handling limits. Inline systems support automatic rejection, but they require stable triggering, precise mounting, and well-designed lighting. Offline machines offer flexible sampling and easier setup for small batches. I have found that a faster camera is not always better. Excessive speed can reduce exposure quality and increase false rejects. That trade-off hurts. Test the machine with real parts, including scratches, stains, reflections, and acceptable variation. Review calibration records, measurement repeatability, software traceability, and operator training before purchase. A short trial may reveal more than a polished specification sheet.
How to Evaluate Image Quality, Speed, and Detection Accuracy
Choosing a CCD inspection machine starts with image quality, not brochure resolution. In production trials, I inspect a 0.2-millimeter scratch under the same lighting used on the factory line. Sharp edges, stable brightness, and low noise matter more than a large pixel count. Ask for raw sample images, not only enhanced screenshots. Reflections can hide defects.
Speed must match the real process. Measure complete inspection time, including exposure, image transfer, processing, and reject signals. A camera rated at 120 frames per second may slow down when images require advanced analysis. Test it with your smallest product spacing and highest conveyor speed. Leave practical capacity for dust, vibration, and brief lighting changes. Faster is not always better.
Detection accuracy needs evidence. Prepare good samples, known defects, borderline defects, and intentionally damaged parts. Record missed defects and false rejects separately. A useful system should identify the target defect repeatedly, not just perform well during a supplier demonstration. Check calibration after temperature changes and lens adjustments. The result may still be imperfect. My own early evaluations sometimes favored sensitivity, creating too many false alarms. That disrupted operators and reduced trust. Review the threshold with production staff, then repeat the test across several shifts. Keep image records, defect labels, and software settings for traceability. Reliable decisions come from repeatable evidence, not impressive numbers.
Installation, Maintenance, Costs, and Supplier Selection Factors
2026 Top CCD Inspection Machine Buying Guide: Installation, Maintenance, Costs, and Supplier Selection Factors
CCD inspection machines now demand careful planning, not only attractive pixel counts. SEMI’s 2025 equipment forecast placed global semiconductor manufacturing investment near 113 billion dollars. That spending increases pressure for stable, measurable inspection results. Before installation, check floor vibration, lighting, compressed air quality, network capacity, and operator access. A practical site survey can prevent costly relocation. In my experience, calibration often takes longer than mechanical setup. That detail is easy to underestimate.
Maintenance costs depend on camera stability, lens cleanliness, lighting replacement, software support, and spare-part availability. NIST manufacturing guidance consistently emphasizes measurement traceability and repeatable calibration. Therefore, request documented accuracy tests, calibration intervals, and sample defect images. Ask suppliers for total cost of ownership over five years, including training, service visits, software updates, and production downtime. The cheapest quotation may become expensive after one failed inspection shift. Cost assumptions also need review.
Tips: Run a paid sample test using your real materials, speeds, and defect sizes. Measure false rejects and missed defects. Require installation acceptance criteria in writing. Keep critical cables, lighting modules, and calibration targets on site. Select suppliers with local technicians, clear response times, cybersecurity controls, and verifiable references. Do not rely on a demonstration using perfect samples. That is where many buying decisions become weaker.
